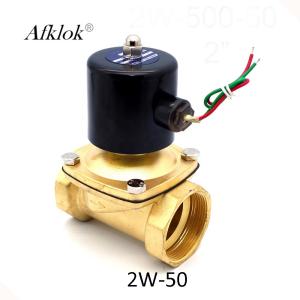

Brass DN50 10Bar Normally Closed 2 inch Water Solenoid Valve 24 Volt

Product Categories

Shenzhen Wofly Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : Guangdong, China (Mainland)

Brand Name : AFK

Model Number : 2W-50

Supply Ability : 30000 Set/Sets per Week

Packaging Details : White box + Export packing

MOQ : >=1 Sets

Price : Negotiable

Certification : CE

Payment Terms : L/C, T/T, Western Union, MoneyGram

Application : Tube & pipe

Material : Brass

Working pressure : 0-10bar

Thread : G.NPT

Seal : NBR VITON EPDM

Contact Now

Brass DN50 10Bar Normally Closed 2 inch Water Solenoid Valve 24 Volt

DESIGN FEATURES
1. Direct acting
2. Fit for air, water, oil , the neutral gasliquid.
3. Have both normally open and closed.
4.Pipe size from 1/8' to 2' .
5. Orifice size: 2.5 mm to 50 mm
6.Thread connnector : NPT
7. Pressure: 1-10bar
8. Voltage: AC220/AC110/AC24/DC24V/DC12V

Structure Parameters

Model NO.	2W-200-20	2W-250-25	2W-320-32	2W-400-40	2W-500-50
Pipe size	3/4'	1'	1 1/4‘’	1 1/2‘’	2‘’
Orifice size	20mm	25mm	32mm	40mm	50mm
CV value	7.6	12	24	29	48
Fluid	Air water oil, the neutral gasliquid
Servise voltage	AC380V AC220V AC110V AC24V DC24V DV12V ( allow ± 10%)
Operating	Type	Normally Closed
Body Material	viscosity	( Below )20CST
Working pressure	( water, air ) :0~10 kgf/cm² ( oil ) : 0~7 kgf/m²
Material of seal	Standard : below 80℃ fluid temperature use NBR, below 120℃ use EPDM, below 150℃ use VITON

Product Show
