Place of Origin : Guangdong, China (Mainland)

Brand Name : AFK

Model Number : 2W-500-50

Supply Ability : 50000 Piece/Pieces per Week

Packaging Details : pp bag+inner box+ export carton

MOQ : 10 - 99 Pieces

Price : Negotiable

Certification : CE

Application : pipe

Material : Brass

Temperature of Media : High Temperature

Connection : G, NPT

Medium : gas, oil, water,air

warranty : 1year

Contact Now

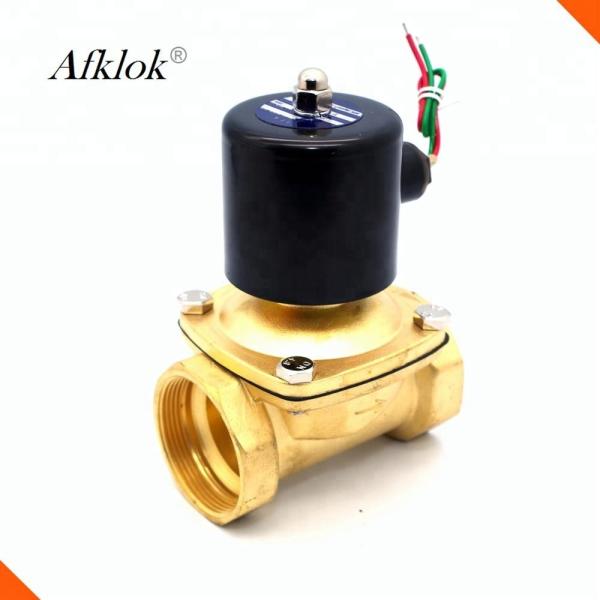

2W-500-50 Direct Acting 2 inch 24vdc Water Brass Solenoid Valve

Product Description

*Model: 2W-50

*Pipe size: 2"

*Orifice size: 50mm

*Thread: G

*Media: Air water oil, the neutral gas liquid

*Function type:Normally closed

*Working pressure : (water, air):1~10kgf/cm2 (Oil):0~7kgf/cm2

*Body material: Brass

*Voltage:AC240V/AC220V/AC120V/AC110V/AC24V/DC24V/DC12V

*Material of seal: Standrad: NBR (Medium temperature: -5℃ ~80℃ )

*2-way normally closed solenoid valve, closed when de-energizes,open when energized.

2W series	Model NO.	pipe size	Orifice size	CV
Size range	2W-025-06	1/8	2.5mm	0.23
	2W-025-08	1/4	4mm	0.23
	2W-040-10	3/8	4mm	0.6
	2W-160-10	3/8	16mm	4.8
	2W-160-15	1/2	16mm	4.8
	2W-200-20	3/4	20mm	7.6
	12W-250-25	1"	25mm	12
	2W-320-32	1-1/4"	32mm	24
	2W-400-40	401-1/2"	40mm	29
	2W-500-50	2"	50mm	48
Application	Air, water, oil, the neutral gas liquid
Operating	direct acting	type	normally closed
body material	brass	viscosity	(below) 20CST
Working pressure	0-10abr (water, air), 0-7bar(oil)
Voltage	220VAC, 24VAC, 24VDC, 12VDC, 110VAC,38VAC (allow ±10%)
Material of seal	-5-80℃ (Normal)	-5-120℃	-5-150℃
Material of seal	NBR	EPDM	Viton

Detailed Images
