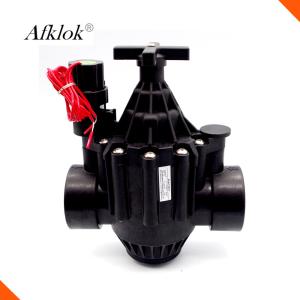

Irrigation 220VAC 12VDC 24VDC 24VAC 110VAC DC Latching 2 inch Water Solenoid Valve

Place of Origin : Guangdong, China (Mainland)

Brand Name : AFK

Model Number : 200P

MOQ : 10-49 Pieces

Price : Negotiable

Packaging Details : Paper Box

Payment Terms : L/C, T/T, Western Union, MoneyGram

Application : General

Material : Nylon, platic

Temperature of Media : Medium Temperature

working temperature : 80 degree

Single package size : 21X13X6 cm

Contact Now

Irrigation 220VAC 12VDC 24VDC 24VAC 110VAC DC Latching 2 inch Water Solenoid Valve

it's currently one of the most widely used solenoid valve in garden irrigation
Applied in large area of lawn, Gym, agriculture, industrial dedusting and water treatment equipment

TECHNICAL PARAMETERS
material	nylon plastic body, NBR seal
Fluid	water
Fluid temperature	≤43°C

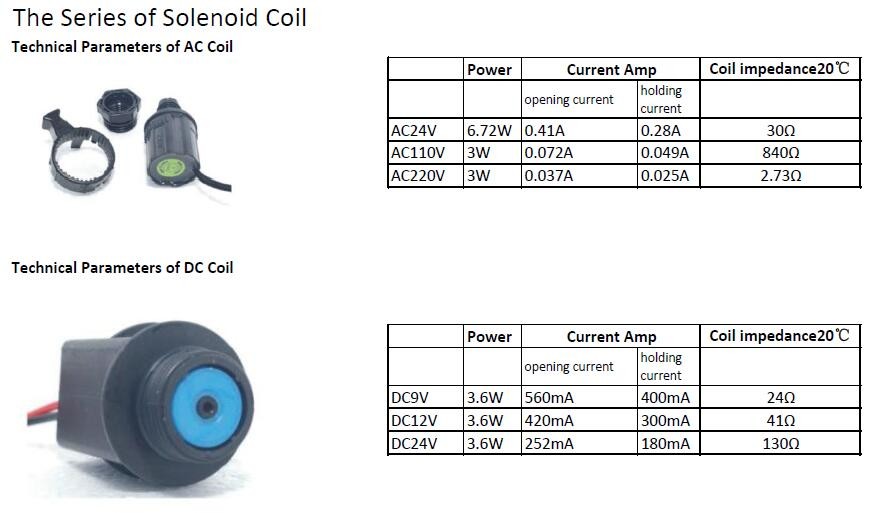

Service voltage	6-20VDC(latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
Pulse width	20-500mSec (only for latching type)
Coil resistance	6 Ω
Capacitance	4700uF
Coil inductance	12mH
Connection	G(BSP) female thread is regular, special order for NPT(3/4" and 1")
Size	075D: 3/4", 20mm (BSP or NPT female) 100D:1", 25mm (BSP or NPT female ) 100P:1", 25mm (BSP female) 150P:1-1/2"(1.5"), 40mm (BSP female) 200P:2", 50mm (BSP female) 300P:3", 80mm (BSP female, male, flange) 400P:4", 100mm (BSP female, male, flange)
Working pressure	3/4" and 1": 1-10bar 1.5"and 2": 1-10.4bar 3"and 4": 0.7-14bar
Flow rate	3/4": 5 m³/h 1": 9 m³/h 1.5"-2": 0.45-34.05 m³/h 3"-4": 1.1-70 m³/h
Operation mode	valve element lock position,valve open, release position, valve close.

Detailed Images

Irrigation 220VAC 12VDC 24VDC 24VAC 110VAC DC Latching 2 inch Water Solenoid Valve

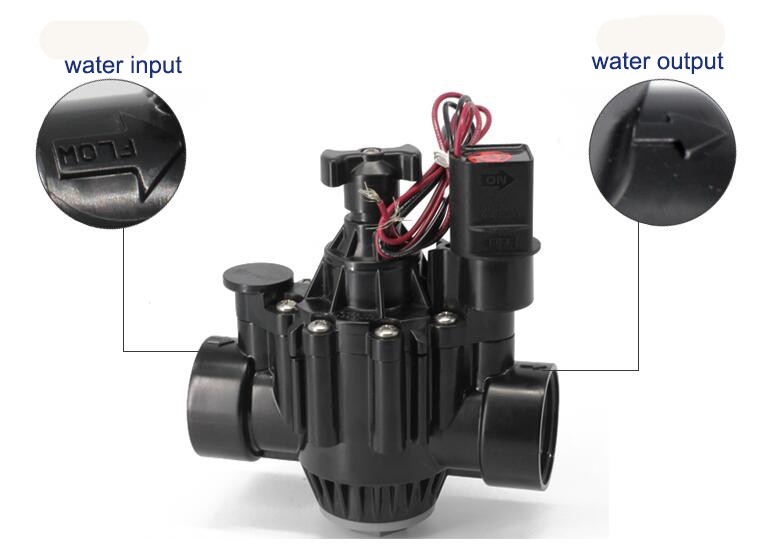

200P solenoid valve

1. Pilot operating construction, valve body in nylon material
2. double filter prevent Blocking electromagnetic iron core
3.Totally Closed electromagnetic coil, waterproof
4.having slow closed function, preveting water hammer, damaging system

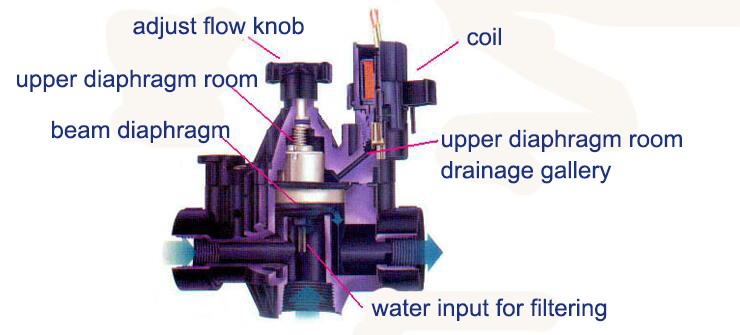

200P solenoid valve

1.Straight valve and Angle valves to be in harmony an organic whole

2.with adjusting knob (adjusting pressure)

3.Dimesion:235 X 127 X 254mm

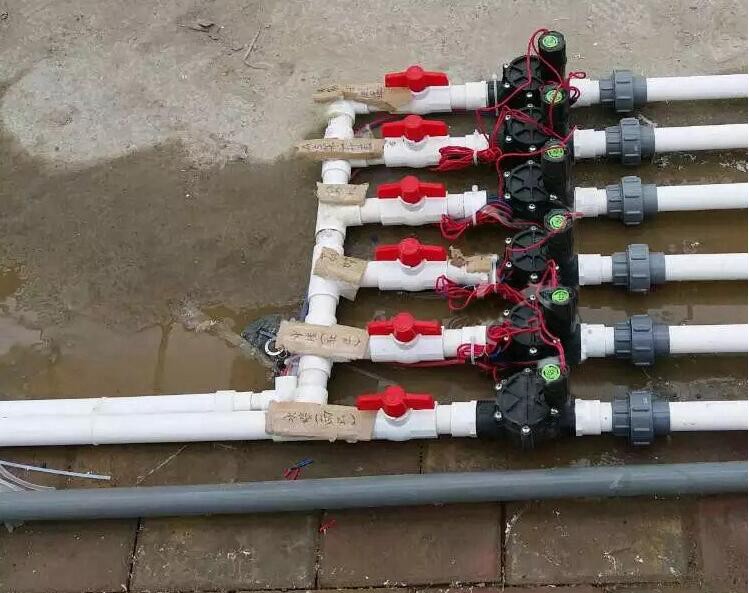

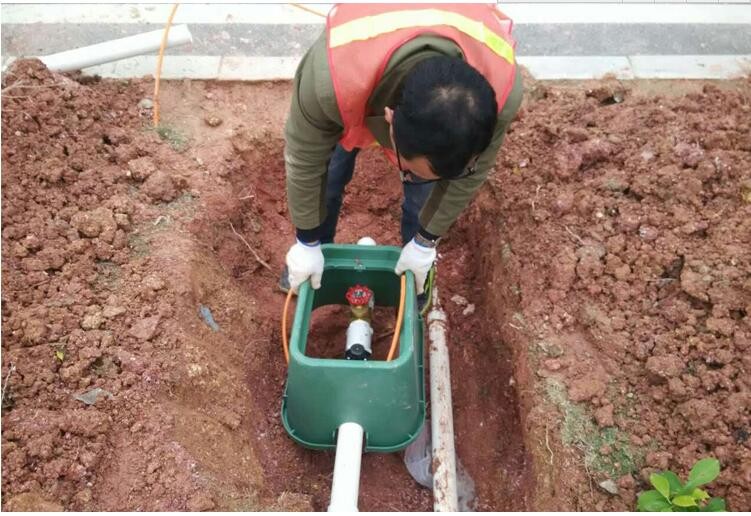

Application
