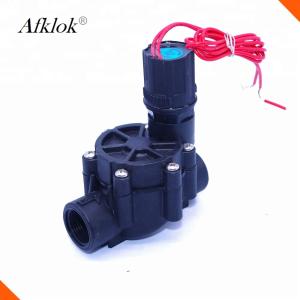

Normally Closed Control Water 1inch 3/4 inch Irrigation Valve 24vac

Place of Origin : Guangdong, China (Mainland)

Brand Name : AFK

Model Number : 075D

MOQ : 10-49 Pieces

Price : Negotiable

Certification : None

Material : Nylon, platic

Temperature of Media : Medium Temperature

Pressure : Low Pressure

Applicable : water

working temperature : 80 degree

pipe size : 50mm

Selling Units : Single item

Contact Now

Normally Closed Control Water 1inch 3/4 inch Irrigation Valve 24vac

it's currently one of the most widely used solenoid valve in garden irrigation
Applied in large area of lawn, Gym, agriculture, industrial dedusting and water treatment equipment

TECHNICAL PARAMETERS
material	nylon plastic body, NBR seal
Fluid	water
Fluid temperature	≤43°C
Service voltage	6-20VDC(latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
Pulse width	20-500mSec (only for latching type)
Coil resistance	6 Ω
Capacitance	4700uF
Coil inductance	12mH
Connection	G(BSP) female thread is regular, special order for NPT(3/4" and 1")

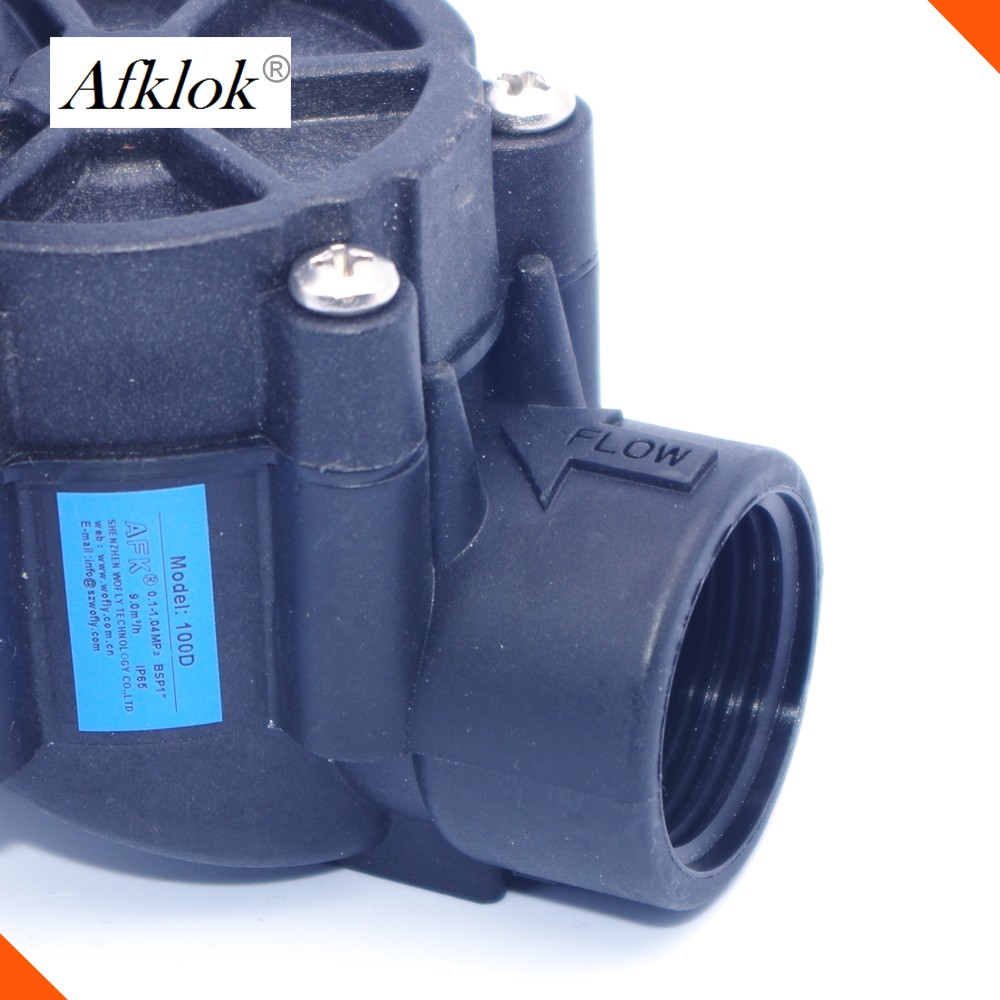

Size	075D: 3/4", 20mm (BSP or NPT female) 100D:1", 25mm (BSP or NPT female ) 100P:1", 25mm (BSP female) 150P:1-1/2"(1.5"), 40mm (BSP female) 200P:2", 50mm (BSP female) 300P:3", 80mm (BSP female, male, flange) 400P:4", 100mm (BSP female, male, flange)
Working pressure	3/4" and 1": 1-10bar 1.5"and 2": 1-10.4bar 3"and 4": 0.7-14bar
Flow rate	3/4": 5 m³/h 1": 9 m³/h 1.5"-2": 0.45-34.05 m³/h 3"-4": 1.1-70 m³/h
Operation mode	valve element lock position,valve open, release position, valve close.

075D solenoid valve

1. Pilot operating construction, valve body in nylon material
2. double filter prevent Blocking electromagnetic iron core
3.Totally Closed electromagnetic coil, waterproof
4.having slow closed function, preveting water hammer, damaging system

075D solenoid valve

1.Straight valve and Angle valves to be in harmony an organic whole

Normally Closed Control Water 1inch 3/4 inch Irrigation Valve 24vac
