Low Pressure Irrigation Solenoid Valve 100D 1 Inch For Garden Irrigation

  • 1
  • 2

Place of Origin : Guangdong, China (Mainland)

Brand Name : AFK

Model Number : 100D

Supply Ability : 300000 Piece/Pieces per Week

Packaging Details : PP platic bag+box+export carton

MOQ : 1 - 99 Pieces

Price : Negotiable

Certification : None

Application : General, water irrigation, water treatment, green house etc

Material : Plastic

Temperature of Media : Medium Temperature

Pressure : Low Pressure

acting : pilot acting

Contact Now

Low Pressure Irrigation Solenoid Valve 100D 1 Inch For Garden Irrigation

Product Description

TECHNICAL PARAMETERS
material nylon plastic body, NBR seal
Fluid water
Fluid temperature ≤43°C
Environment temperature ≤52°C

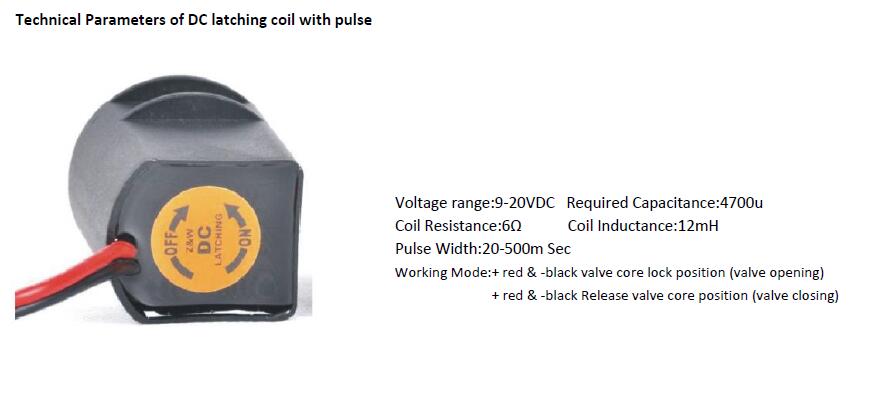

Service voltage 6-20VDC(can be order latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
Pulse width 20-500mSec (only for latching type)
Coil resistance 6 Ω
Capacitance 4700uF
Coil inductance 12mH
Connection G(BSP) female thread is regular, special order for NPT(3/4" and 1")

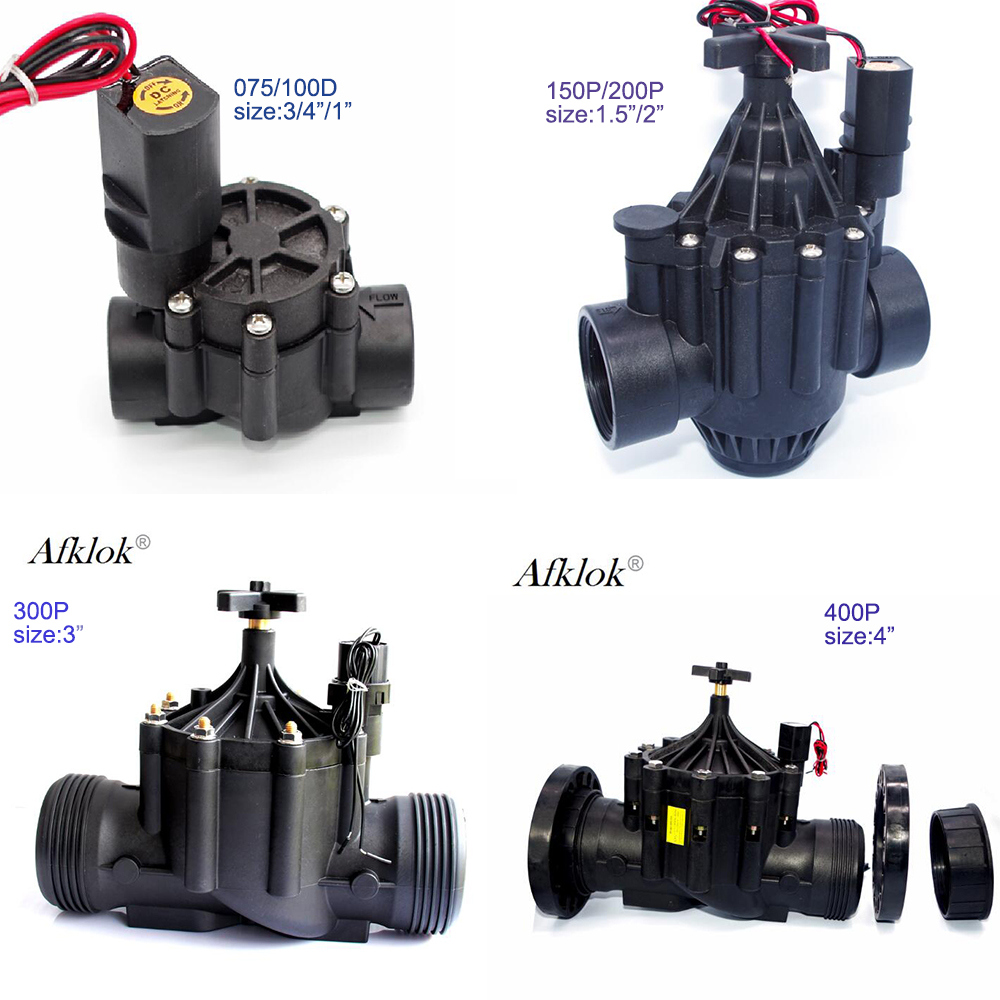

Size

075D: 3/4", 20mm (BSP or NPT female)

100D:1", 25mm (BSP or NPT female )

100P:1", 25mm (BSP female)

150P:1-1/2"(1.5"), 40mm (BSP female)

200P:2", 50mm (BSP female)

300P:3", 80mm (BSP female, male, flange)

400P:4", 100mm (BSP female, male, flange)

Working pressure

3/4" and 1": 1-10bar

1.5"and 2": 1-10.4bar

3"and 4": 0.7-14bar

Flow rate

3/4": 5 /h

1": 9 m³/h

1.5"-2": 0.45-34.05 m³/h

3"-4": 1.1-70 m³/h

Operation mode valve element lock position,valve open, release position, valve close.

Low Pressure Irrigation Solenoid Valve 100D 1 Inch For Garden Irrigation

Low Pressure Irrigation Solenoid Valve 100D 1 Inch For Garden Irrigation
