Place of Origin : Guangdong, China (Mainland)

Brand Name : AFK

Model Number : 200P

Supply Ability : 300000 Piece/Pieces per Week

Packaging Details : PP platic bag+box+export carton

MOQ : 1 - 99 Pieces

Price : Negotiable

Certification : None

Power : Solenoid

Media : Water

Port Size : 2"

Structure : Shutoff

size : 3/4", 1", 1-1/2", 2", 3", 4"

Contact Now

12volt adjustable flow 24v solenoid valve water controller

Product Description

*Model: 200P

*Pipe Size: 2 inch

*Orifice Size: 50mm

*Thread: BSP

*Medium: Water

*Operating: Pilot

*Connection: Flange

*Function type: Normally Closed

*Working Pressure: 0.1-1.0Mpa

*Body material: Nylon

*Voltage: DC Latching, AC110V, AC220V, AC24V, DC24V, DC12V,DC9V(optional)

TECHNICAL PARAMETERS
material	nylon plastic body, NBR seal
Fluid	water
Fluid temperature	≤43°C
Environment temperature	≤52°C
Service voltage	6-20VDC(can be order latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
Pulse width	20-500mSec (only for latching type)
Coil resistance	6 Ω
Capacitance	4700uF
Coil inductance	12mH
Connection	G(BSP) female thread is regular, special order for NPT(3/4" and 1")
Size	075D: 3/4", 20mm (BSP or NPT female) 100D:1", 25mm (BSP or NPT female ) 100P:1", 25mm (BSP female) 150P:1-1/2"(1.5"), 40mm (BSP female) 200P:2", 50mm (BSP female) 300P:3", 80mm (BSP female, male, flange) 400P:4", 100mm (BSP female, male, flange)
Working pressure	3/4" and 1": 1-10bar 1.5"and 2": 1-10.4bar 3"and 4": 0.7-14bar
Flow rate	3/4": 5 m³/h 1": 9 m³/h 1.5"-2": 0.45-34.05 m³/h 3"-4": 1.1-70 m³/h
Operation mode	valve element lock position,valve open, release position, valve close.

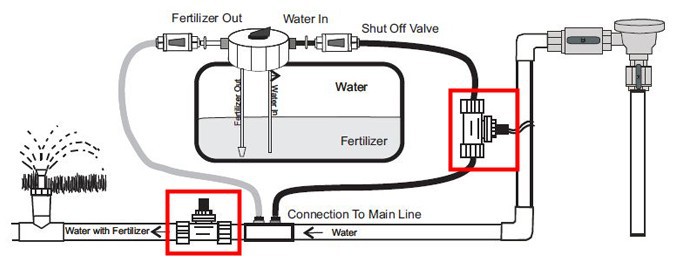

Irrigation System
