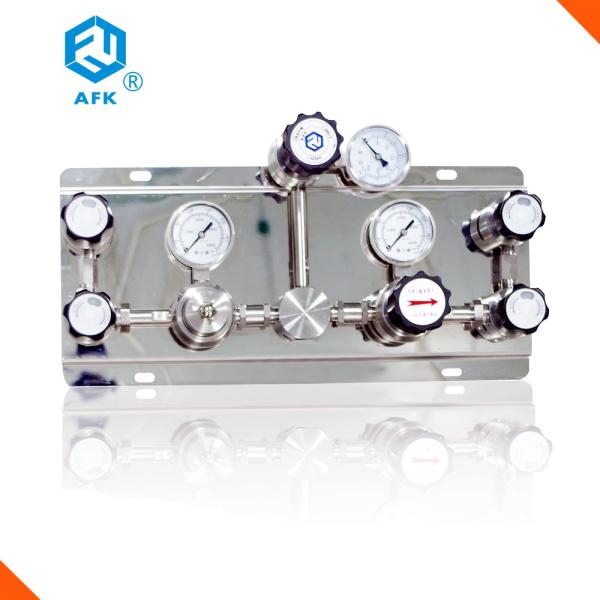

3000 Psi 316L Semi-Automatic Changeover Swithing Station for High Flow Rate Overview
Max Inlet Pressure: 2200, 3000 Psig
Outlet Pressure Range: 0~25, 0~50, 0~100, 0~150 , 0~250psig
Working Temperature: -40° F ~+165° F(-40°C+74°C)
Cv: 0.14
Valve Seat: PU, PTFE ,FCTFE
Body Material: 316L
BodyThread : 1/4NPT F
Body ports: 3 ports
Type: can't be adjustable
Body material: nickled plated brass
Warranty: 1 Year
Selling Units: Single Item
Single Package
Size : 36X15X26 Cm
Single Gross Weight: 7.0 Kg
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 36X18X18 cm
- Single gross weight:
- 7.0 kg
- Package Type:
- Export packing
- Lead Time :
-
| Quantity(Set) | 1 - 200 | >200 |
| Est. Time(days) | 10 | To be negotiated |
-
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
| ORDERING INFORMATION |
| WL3 | 1 | 1 | 1 | S | H | 1 | 1 | -N2 |
| Series | Function Options | Outlet Connection | Inlet Connection | Body Material | Input Pressure | Outlet Pressure | Gauge | Gas Option |
| WL300 Series Semi-automatic Changeover Device | 1.With emptying, purging distribution function | 1:1/4”NPT(F) | 1:1/4″Weldmg | S:stainless | H:3000psi | 1:25psi | 1:MPa | Blank: None |
| | 2.Wrthout Emptying, purging distribution function | 2:1/4”Tube fitting | 2:1/4”NPT(M) | steel | M:2200psi | 2:50psi | 2:Bar/psi | N2:nitrogen |
| | 3.Emptying. purging distnbuUon+pressure sensor | 3:3/8”NPT(F) | 3:3/8”Melding | C:nickel plated | L:1000psi | 3:100psi | 3:psi/KPa | O2:oxygen |
| | 4.With pressure sensor | 4:3/8”Tube fitting | 4:3/8”NPT(M) | brass | O: Other | 4:150psi | 4:Other | H2:hydrogen |
| | 5:Other | 5:1/2”NPT(F) | 5:1/2”Melding | | | 5:250psi | | C2H2:acetylene |
| | | 6:1/2”Tube fitting | 6:1/2”NPT(M) | | | 6:Other | | CH4:methane |
| | | 7:Other | 7:1/4”Tube fitting | | | | | Ar:argon |
| | | | 8:3/8″Tube fitting | | | | | He:helium |
| | | | 9:1/2″Tube fitting | | | | | Air:air |
| | | | 10:Other | | | | | |
FAQ
Q1. What is your terms of packing?
A: Export standard.
Q2. What is your terms of payment?
A: T/T ,PayPal, Western Union.
Q3. What is your terms of delivery?
A: EXW.
Q4. How about your delivery time?
A: Generally, it will take 5 to 7 days after receiving your full payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
