Specification:
Hi friend, welcome to our Alibaba store.
We have various of fittings for stainless steel tube(pipe), copper tube(pipe) and plastic tube(pipe). They can work in high pressure high temperature conditions. Usually, they are called tube fittings, pipe fittings, hydraulic fittings, compression fittings, connection fittings and so on.
You can choose any model as follows, or describe what shape, connection, size etc. you need.
Shape Instruction:
- Straight union: like U, MC, TAF etc.
- 90° elbow: like ME, UE, EBW, FE etc.
- T(tee, 3 way): like MRT, MBT, UT, MT etc.
- Cross(4 way): like UCR etc.
Connection Instruction:
- Thread: NPT male thread, NPT female thread, BSPT male thread, BSPT female thread.
- Ferrule: like U and UCR, it can be directly connected to tube or plastic hose.
- Welded: like one end of ODSW.
- Tube: like one end of TAM.
Feature:
- All the fittings are used for gas or oil.
- Highest pressure: 3000psi (206bar, 20.6MPa)
- Very very low leak, can be negligible (zero leak).
- Long service life
- Warranty one year
| Union Elbow (Metric) |
| Tube O.D. | Catalog Number | A | D | E | F | G | H |
| 3 | UE-3-0 | 22.3 | 12.9 | 2 | 12 | 10 | 15.7 |
| 4 | UE-4-0 | 25.4 | 13.7 | 3 | 12 | 12 | 18.8 |
| 6 | UE-6-0 | 27.0 | 15.3 | 5 | 12 | 14 | 19.6 |
| 8 | UE-3-0 | 28.8 | 16.2 | 6 | 14 | 17 | 21.3 |
| 10 | UE-10-0 | 31.5 | 17.2 | 8 | 17 | 19 | 23.9 |
| 12 | UE-12-0 | 36.0 | 22.8 | 10 | 22 | 22 | 25.9 |
| 14 | UE-14-0 | 38.0 | 24.4 | 10 | 24 | 27 | 27.9 |
| 15 | UE-15-0 | 38.8 | 24.4 | 11 | 24 | 27 | 27.9 |
| 16 | UE-16-0 | 38.0 | 24.4 | 12 | 24 | 27 | 27.9 |
| 18 | UE-18-0 | 39.8 | 24.4 | 14 | 27 | 30 | 29.7 |
| 20 | UE-20-0 | 44.6 | 26.0 | 16 | 30 | 32 | 34.5 |
| 22 | UE-22-0 | 44.6 | 26.0 | 18 | 30 | 32 | 34.5 |
| 25 | UE-25-0 | 49.1 | 31.3 | 21 | 34 | 38 | 36.5 |
| Fractional |
| 1/16 | UE-005-0 | 17.8 | 8.6 | 1 | 10 | 10 | 14.0 |
| 1/8 | UE-01-0 | 22.4 | 12.7 | 3 | 12 | 12 | 15.8 |
| 3/16 | UE-015-0 | 25.4 | 13.7 | 3 | 12 | 12 | 18.8 |
| 1/4 | UE-02-0 | 27.0 | 15.2 | 5 | 12 | 14 | 19.6 |
| 3/8 | UE-03-0 | 30.5 | 16.8 | 8 | 17 | 17 | 21.3 |
| 1/2 | UE-04-0 | 36.0 | 22.8 | 10 | 22 | 22 | 23.1 |
| 5/8 | UE-05-0 | 38.1 | 24.4 | 12 | 24 | 27 | 26.0 |
| 3/4 | UE-06-0 | 40.0 | 24.4 | 15 | 27 | 30 | 29.7 |
| 1 | UE-08-0 | 49.0 | 26.0 | 21 | 34 | 38 | 36.8 |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve
4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
Product Tags:
|
|

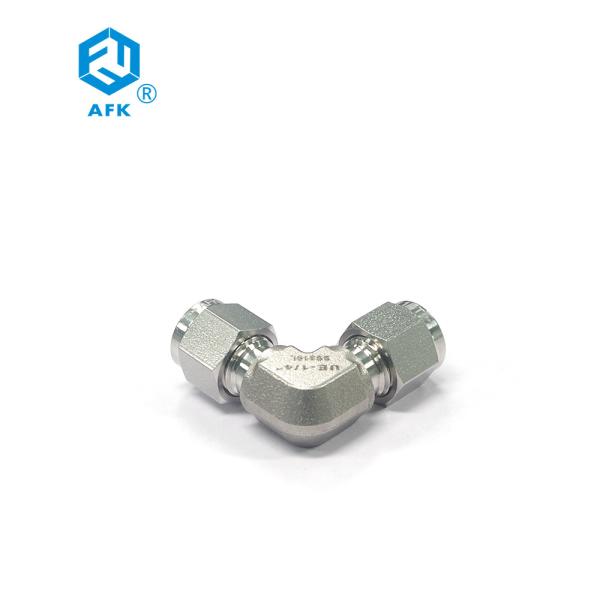

3000psig Ss316 1/4'' Ferrule OD Equal Elbow Gas Tube Fitting Images
|
