316L 600Psi Stainless Steel Pressure Regulator 1/4 Inch CE PTFE Valve

Brand Name : AFK

Model Number : R11

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000PC

Delivery Time : 1WEEK

Packaging Details : Expotrt Packing

Material : Stainless Steel,SS304/SS316L,316

Warranty : 1 Year

Outlet : 0~25,0~50,0~100,0~250,0~500psig

Cv : 0.08

inlet : 500,3000psig

Applicable temperature : -40℃~230℃

Contact Now

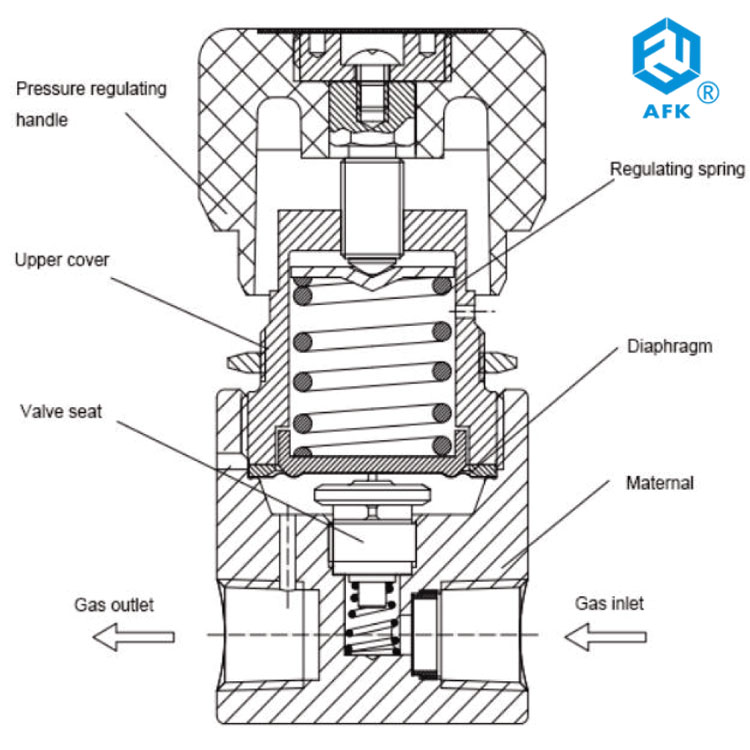

R11 Series stainless steel pressure regulator is Single-stage diaphragm ,vacuum structure Stainless diaphragm output.It has piston pressure reducing structure,constant outlet pressure,mainly used for high input pressure,suitable for purified gas,corrosive gas etc.

DESIGN FEATURES	TYPICAL APPLICATIONS
SIngle-stage reduce structure	Laboratory
Use hard-seal between body and Diaphragm	Gas Chromatograph
Body Thread:1/4"NPT(F)	Gas Laser
Easy to sweep inside body	Gas bus
Filter mesh inside	Oil and chemical undustry
Panel mountable or wall mounted	Tested instrumentation

316L 600Psi Stainless Steel Pressure Regulator 1/4 Inch CE PTFE Valve

R11	L	B	B	D	G	00	02	P
Item	Body Material	Body Hole	Inlet Pressure	Outlet Pressure	Pressure Guage	Inlet size	Outlet size	Mark
R11	L:316	A	D:3000 psi	F:0-500psig	G:Mpa guage	00:1/4″NPT(F)	00:1/4″NPT(F)	P:Panel mounting
	B:Brass	B	E:2200 psi	G:0-250psig	P:Psig/Bar Guage	01:1/4″NPT(M)	01:1/4″NPT(M)	R:With relief valve
		D	F:500 psi	K:0-50pisg	W:No guage	23:CGGA330	10:1/8″ OD	N:Needle calve
		G		L:0-25psig		24:CGGA350	11:1/4″ OD	D:Diaphregm valve
		J				27:CGGA580	12:3/8″ OD
		M				28:CGGA660	15:6mm OD
						30:CGGA590	16:8mm OD
						52:G5/8″-RH(F)
						63:W21.8-14H(F)
						64:W21.8-14LH(F)

SPECIFICATION
Max inlet pressure:	500,3000psi
Outlet pressure:	0~25,0~50,0~100,0~250,,0~500 psig
Proof pressure :	1.5 times of maximum rated pressure
Working tem:	-40℉~+446℉(-40℃~+230℃)
Leakage rate:	2*10-8 atm cc/ sec He
Cv:	0.08

MATERIAL
Body:	316L,Brass
Roof:	316L,Brass
Diaphragm:	316L
Filter mesh:	316L(10U m)
Valve seat:	PCTFE,PTFE,Vespel
Spring loaded:	316L
Valve disc regulation pole:	316L

316L 600Psi Stainless Steel Pressure Regulator 1/4 Inch CE PTFE Valve
