1000psi Forged Reducing Stainless Steel Weld Fittings Hexagon Head

Brand Name : AFK

Model Number : SF+PF

Certification : CE

Place of Origin : China

MOQ : 1~10

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000PC

Delivery Time : 1WEEK

Packaging Details : Expotrt Packing

Material : Stainless Steel,316L,Stainless steel 304 or 316,Stainless Steel304 316L

Shape : reducing

Head code : Hexagon

Connection : Male,Female

Technics : Forged

Medium : Gas

Name : Stainless Steel Tube Fittings

Size : 1/4" , 1" , 1/8" , 1/2" , 3/4"

Contact Now

Short Description:

Model No.: SF+PF

Size: 1/8″, 1/4″, 3/8″, 1/2″, 3/4″ 1″ PT

Working pressure: 1000psi

Material: ss304

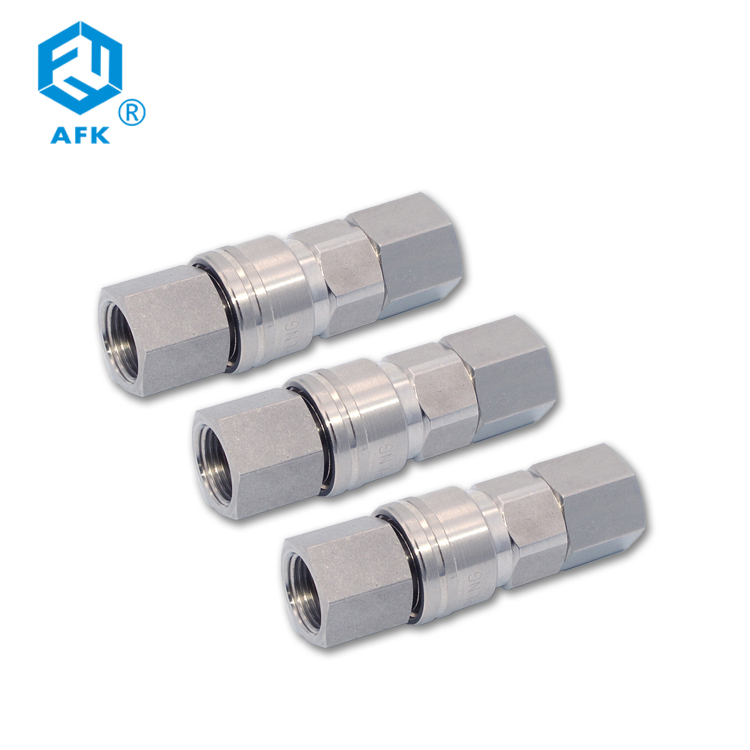

1000psi Forged Reducing Stainless Steel Weld Fittings Hexagon Head

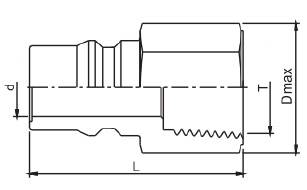

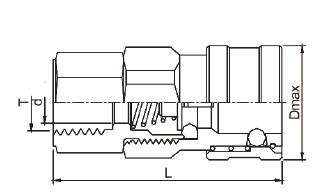

Model SF

Socket-Female Thread

Part No.	Female Thread Size T(pt)	Dimensions (mm)
Part No.	Female Thread Size T(pt)	L	Damx.	d
21SF	1/8”	44.5	Φ25	Φ5
22SF	1/4”	50.0	Φ25	Φ7
23SF	3/8”	51.0	Φ25	Φ9
24SF	1/2”	54.5	Φ25	Φ9
44SF	1/2”	60.0	Φ35	Φ15
46SF	3/4”	60.0	Φ35	Φ15
48SF	1”	68.0	Φ35	Φ15
48SF	1”	68.0	Φ35	Φ15

1000psi Forged Reducing Stainless Steel Weld Fittings Hexagon Head

Model PF

Plug-Female Thread

Part No.	Female Thread Size T(pt)	Dimensions (mm)
Part No.	Female Thread Size T(pt)	L	IDamx.	d
21PF	1/8″	33.0	H14	Φ7.5
22PF	1/4-	36,0	H17	Φ7.6
23PF	3/8″	37.0	H19	Φ7.5
24PF	1/2^-	40.0	H24	Φ7.5
44PF	1/2-	45.5	H24	Φ12
46PF	3/4″	46.0	H30	Φ12
48PF	1”	51.5	H38	Φ12

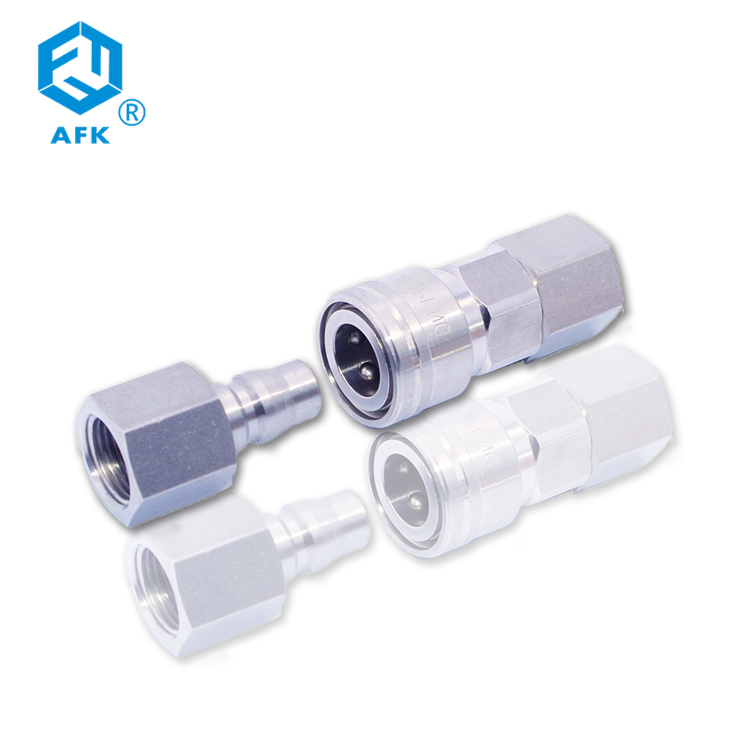

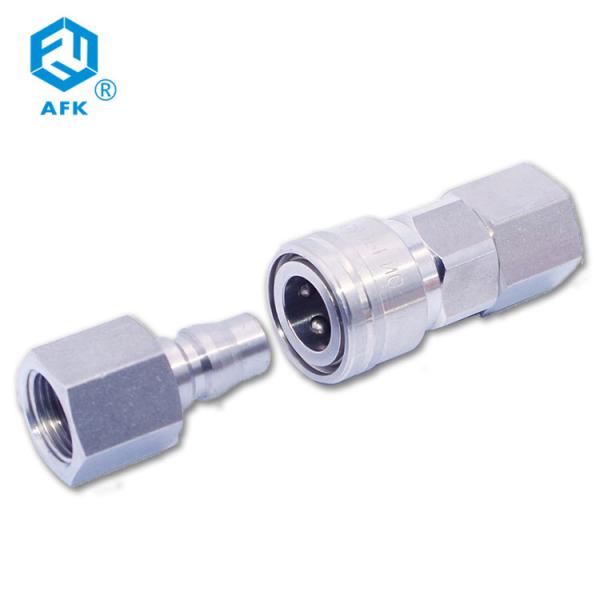

Prodcut Display

1000psi Forged Reducing Stainless Steel Weld Fittings Hexagon Head

Corporate Style

Projcet

1000psi Forged Reducing Stainless Steel Weld Fittings Hexagon Head

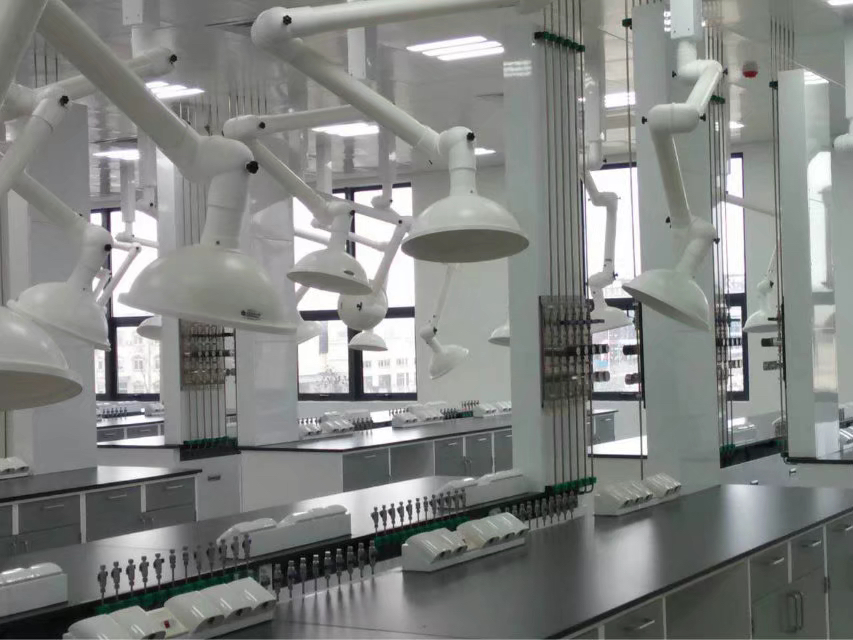

Installation items of pressure reducer

1000psi Forged Reducing Stainless Steel Weld Fittings Hexagon Head

Installation items of pressure reducer

1000psi Forged Reducing Stainless Steel Weld Fittings Hexagon Head

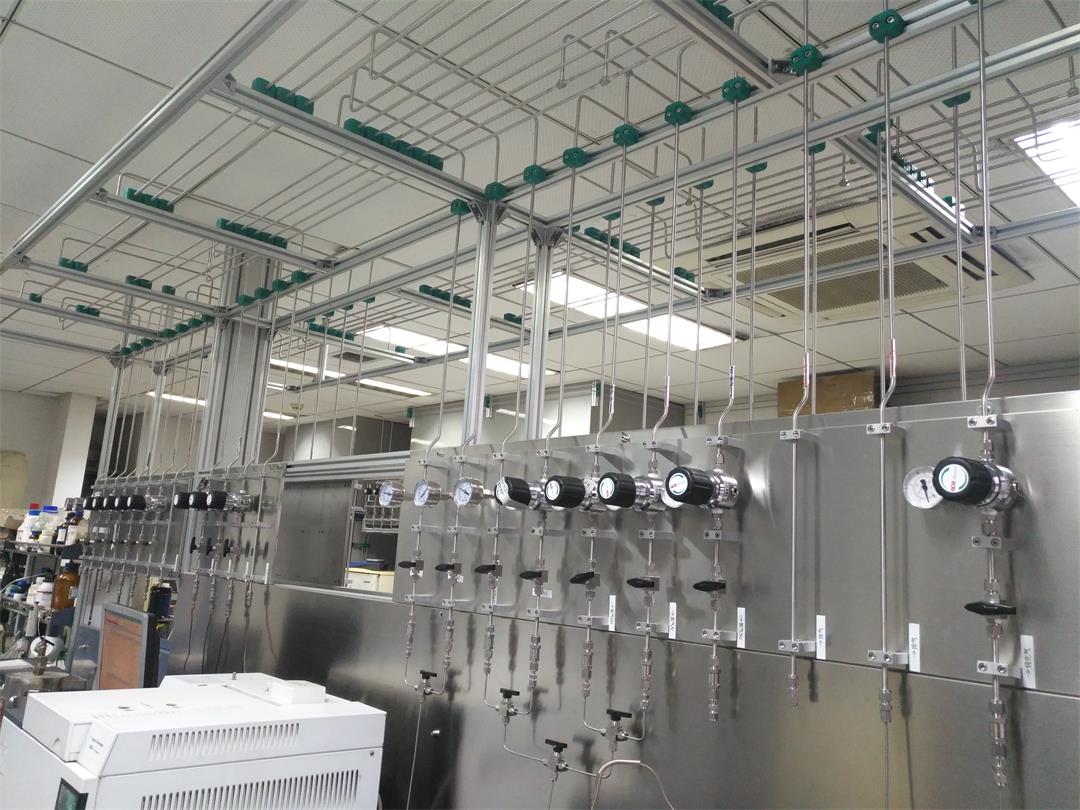

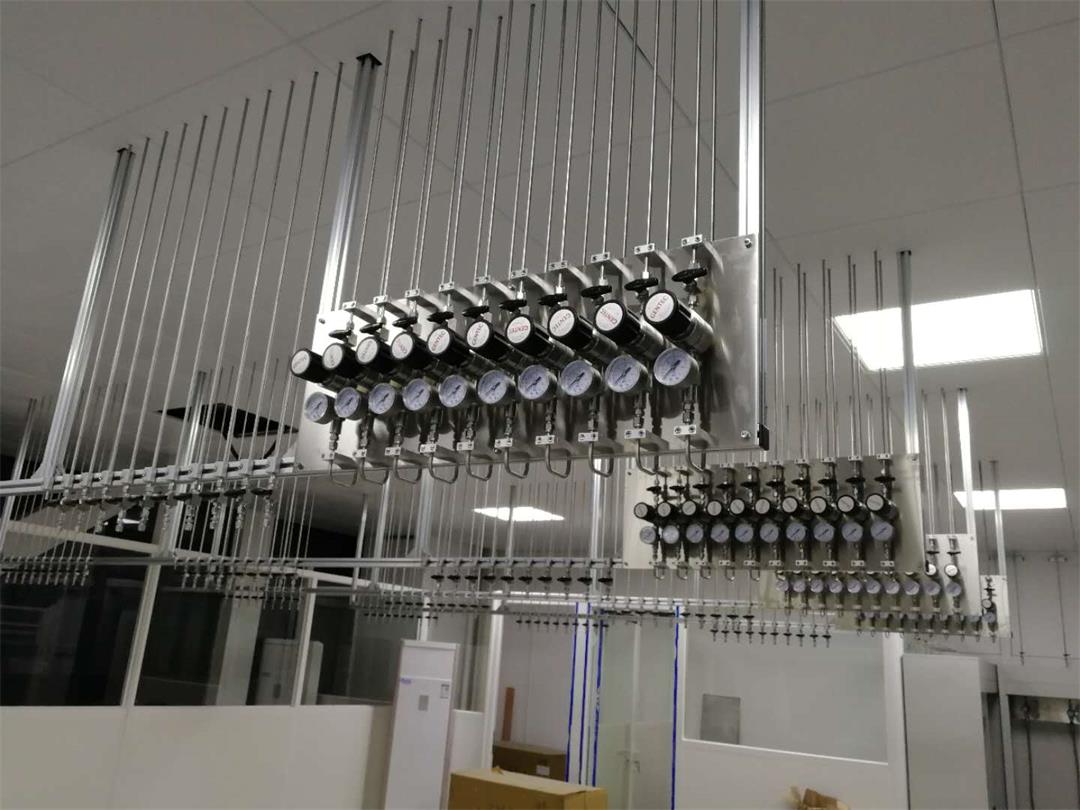

Gas supply installation project

1000psi Forged Reducing Stainless Steel Weld Fittings Hexagon Head

Gas supply installation project

The above is our company, the project, we are the gas Porter, we not only sell products, but also for customers to install services
