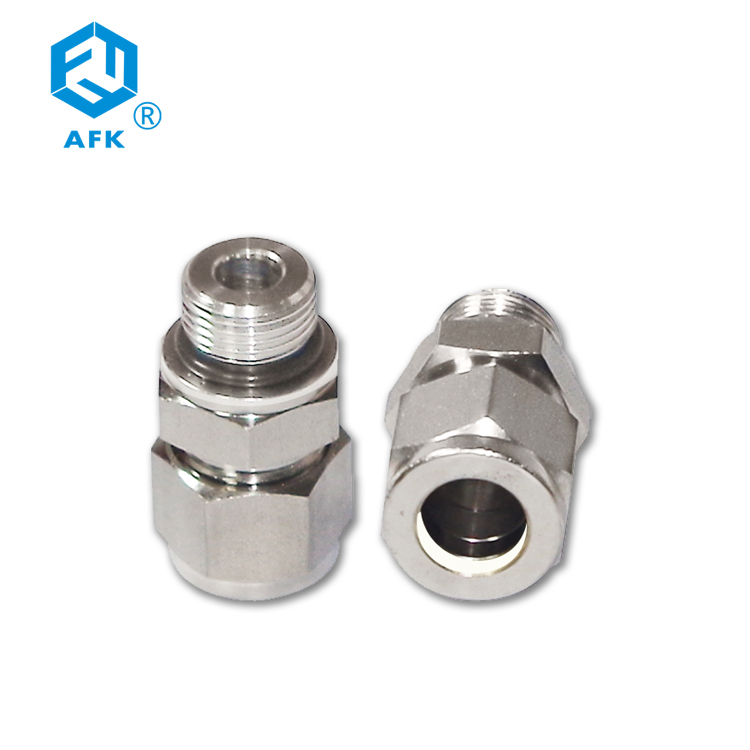

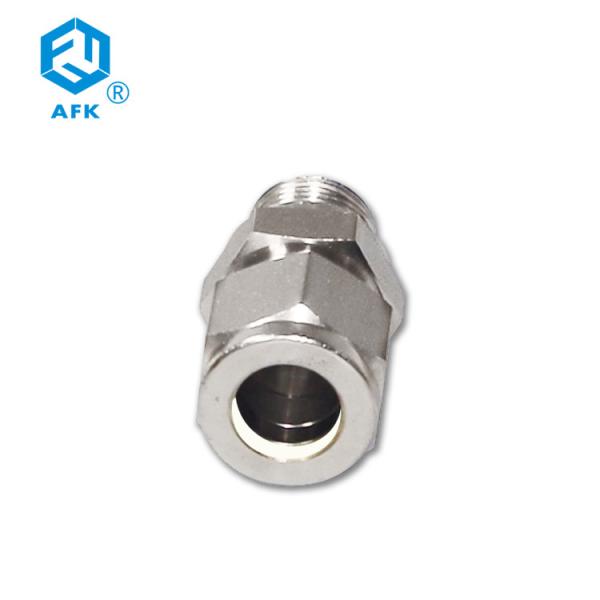

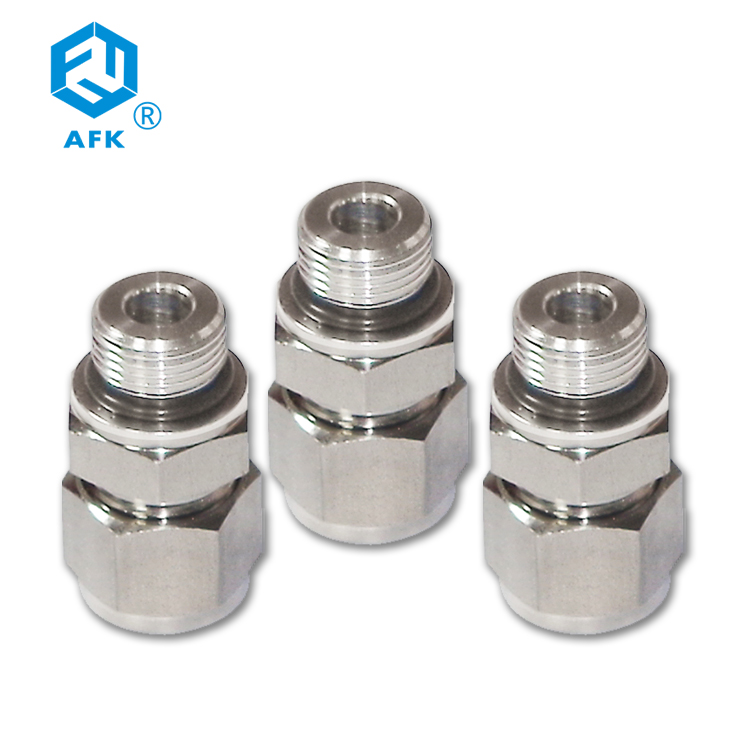

NPT Connector Union SS316 Screwed Tube Fittings 8mm 3000PSI

Brand Name : AFK

Model Number : MC

Certification : CE

Place of Origin : China

MOQ : 1~10

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000PC

Delivery Time : 1WEEK

Packaging Details : Expotrt Packing

Material : Stainless Steel,316L,Stainless steel 304 or 316,Stainless Steel304 316L

Head code : Hexagon

Connection : Female

Technics : Forged

Medium : Water,Gas

Pressure : 3000PSI

Warranty : 1 Year

Size : 3mm , 4mm , 6mm , 8mm

Contact Now

Product Introduction

Product Name: MOP O-Seal Pipe Thread Connector Material:stainless steel 316, ss304

Working pressure :3000PSI

End Connection :Tube O.D. X male (BSPP, NPT, BSPT), Tube O.D. X female (BSPP, NPT, BSPT)

NPT Connector Union SS316 Screwed Tube Fittings 8mm 3000PSI

Connects Fractional Tube to Female NPT Thread

Part No.	Tube OD T		P (NPT)	Dimensions(mm)
	Tube OD T			E Min	h		H		F	I	I₁	L
	inch	mm		E Min	inch	mm	inch	mm	F	I	I₁	L
MOS-0202N	1/8	3.17	1/8	2.3	3/4	19.05	7/16	11.11	12.7	26.2	7.1	32.8
MOS-0402N	1/4	6.35	1/8	4.8	3/4	19.05	9/16	14.28	15.2	27.7	7.1	35.1
MOS-0404	1/4	6.35	1/4	4.8	15/16	23.81	9/16	14.28	15.2	31.0	9.7	38.4
MOS-06-04	3/8	9.52	1/4	7.1	15/16	23.81	11/16	17.46	16.8	32.5	9.7	39.9
MOS-06-06	3/8	9.52	3/8	7.1	1-1/8	28.57	11/16	17.46	16.8	34.0	10.4	41.4
MOS-06-08	3/8	9.52	1/2	7.1	1-5/16	33.33	11/16	17.46	16.8	39.6	13.5	47.0
MOS-08-08	1/2	12.70	1/2	10.4	1-5/16	33.33	7/8	22.22	22.9	39.6	13.5	49.8
